PRODUCTS

HOT RUNNER CONTROLLER
Micro Electric corporations, Hot Runner Controllers are efficient and economical. Our Multi zone Hot runner Controllers are by single temperature control modules assembled in a cabinet. SSR controlled outputs (or) Thyristor controlled outputs to control Hot runner Heaters & Manifold Heaters are available.
Features HOT RUNNER CONTROLLER
  • Advanced P I D Control algorithm
  • Maximum output power per zone : 3600 watts
  • Supply Volts : 230v / 415v - 3 Phase
  • Dual Display: Set point and actual temperature
  • Thermocouple input : Universal Type
  • Temperature display : oC (or) oF selectable
  • Output : SSR / Thyristor
Applications
  • For Controlling Hot Runner heaters & Manifold Heaters in Plastic Injection Moulds.
Hot Runner controller with HMI touch screen

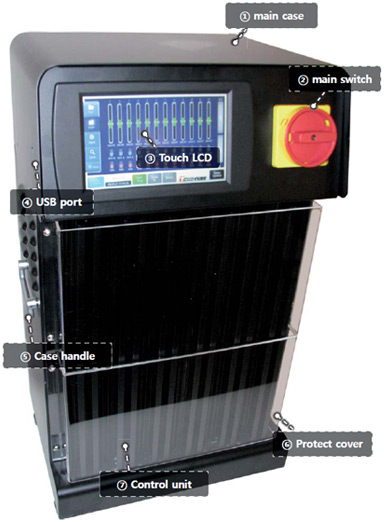

Basic structure of controller

Minimum 18 Zone to Maximum 268 Zone

Control unit specification
Thermocouple Calibration Accuracy 0.1℃
Control Accuracy ±0.3℃ from Set point
Control Algorithm PID, Auto Tuning
Manual Mode Power Compensation for incoming Voltage variation (0 ~ 65%)
Operation Range 30 ~ 500℃ (86~932℉)
Power Output Range 15 Amp/zone (3600W/Zone)
StandBy Temperature User Selectable (30~500℃)
Boost Mode 1~99min. 0~65% output
Sensor Thermocouple Type, J or K
Cold Junction Compensation Internal to enclosure
External Resistance 10Meg. Ohms
Temperature Variation Due to T/C Length None
Input Voltage 90~250VAC, 50/60Hz
Operation Conditions 0 ~ 50 ℃ UP to 90% humidity (Non-Condensing)
